OneLogin SAML Implementation

This article contains OneLogin-specific help for configuring login with SSO via SAML 2.0. For help configuring login with SSO for another IdP, refer to SAML 2.0 Configuration.

Configuration involves working simultaneously within the Bitwarden web app and the OneLogin Portal. As you proceed, we recommend having both readily available and completing steps in the order they are documented.

tip

Already an SSO expert? Skip the instructions in this article and download screenshots of sample configurations to compare against your own.

Download Sample

Open SSO in the web app

Log in to the Bitwarden web app and open the Admin Console using the product switcher:

Product switcher
Product switcher

Open your organization's SettingsSingle sign-on screen:

SAML 2.0 configuration
SAML 2.0 configuration

If you haven't already, create a unique SSO identifier for your organization and select SAML from the the Type dropdown. Keep this screen open for easy reference.

You can turn off the Set a unique SP entity ID option at this stage if you wish. Doing so will remove your organization ID from your SP entity ID value, however in almost all cases it is recommended to leave this option on.

tip

There are alternative Member decryption options. Learn how to get started using SSO with trusted devices or Key Connector.

Create a OneLogin app

In the OneLogin Portal, navigate to the the Applications screen and select the Add App button:

Add an Application
Add an Application

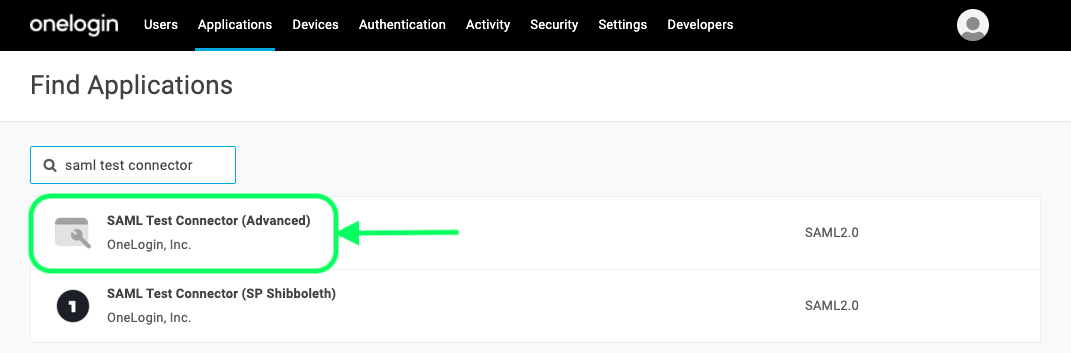

In the search bar, type saml test connector and select the SAML Test Connector (Advanced) app:

SAML Test Connector App
SAML Test Connector App

Give your application a Bitwarden-specific Display Name and select the Save button.

Configuration

Select Configuration from the left-hand navigation and configure the following information, some of which you will need to retrieve from the Single Sign-On screen:

App Configuration
App Configuration

Application Setting

Description

Audience (EntityID)

Set this field to the pre-generated SP Entity ID.

This automatically-generated value can be copied from the organization's SettingsSingle sign-on screen and will vary based on your setup.

Recipient

Set this field to the same pre-generated SP Entity ID used for the Audience (Entity ID) setting.

ACS (Consumer) URL Validator

Despite being marked Required by OneLogin, you don't actually need to enter information into this field to integrate with Bitwarden. Skip to the next field, ACS (Consumer) URL.

ACS (Consumer) URL

Set this field to the pre-generated Assertion Consumer Service (ACS) URL.

This automatically-generated value can be copied from the organization's SettingsSingle sign-on screen and will vary based on your setup.

SAML initiator

Select Service Provider. Login with SSO does not currently support IdP-initiated SAML assertions.

SAML nameID Format

Set this field to the SAML NameID Format you want to use for SAML assertions.

SAML signature element

By default, OneLogin will sign the SAML Response. You can set this to Assertion or Both

Select the Save button to finish your configuration settings.

Parameters

Select Parameters from the left-hand navigation and use the Add icon to create the following custom parameters:

Field Name

Value

email

Email

firstname

First Name

lastname

Last Name

Select the Save button to finish your custom parameters.

SSO

Select SSO from the left-hand navigation and complete the following:

  1. Select the View Details link under your X.509 Certificate:

    View your Cert
    View your Cert

    On the Certificate screen, download or copy your X.509 PEM Certificate, as you will need to use it later. Once copied, return to the main SSO screen.

  2. Set your SAML Signature Algorithm.

  3. Take note of your Issuer URL and SAML 2.0 Endpoint (HTTP). You will need to use these values shortly.

Access

Select Access from the left-hand navigation. In the Roles section, assign application access to all the roles you would like to be able to use Bitwarden. Most implementations create a Bitwarden-specific role and instead opt to assign based on a catch-all (for example, Default) or based on pre-existing roles.

Role Assignment
Role Assignment

Back to the web app

At this point, you have configured everything you need within the context of the OneLogin Portal. Return to the Bitwarden web app to complete configuration.

The Single sign-on screen separates configuration into two sections:

  • SAML service provider configuration will determine the format of SAML requests.

  • SAML identity provider configuration will determine the format to expect for SAML responses.

Service provider configuration

Configure the following fields according to the choices selected in the OneLogin Portal during app creation:

Field

Description

Name ID Format

Set this field to whatever you selected for the OneLogin SAML nameID Format field during app configuration.

Outbound Signing Algorithm

Algorithm used to sign SAML requests, by default sha-256.

Signing Behavior

Whether/when SAML requests will be signed. By default, OneLogin will not require requests to be signed.

Minimum Incoming Signing Algorithm

Set this field to whatever you selected for the SAML Signature Algorithm during app configuration

Want Assertions Signed

Check this box if you set the SAML signature element in OneLogin to Assertion or Both during app configuration.

Validate Certificates

Check this box when using trusted and valid certificates from your IdP through a trusted CA. Self-signed certificates may fail unless proper trust chains are configured within the Bitwarden login with SSO docker image.

When you are done with the service provider configuration, Save your work.

Identity provider configuration

Identity provider configuration will often require you to refer back to the OneLogin Portal to retrieve application values:

Field

Description

Entity ID

Enter your OneLogin Issuer URL, which can be retrieved from the OneLogin app SSO screen. This field is case sensitive.

Binding Type

Set to HTTP Post (as indicated in the SAML 2.0 Endpoint (HTTP)).

Single Sign On Service URL

Enter your OneLogin SAML 2.0 Endpoint (HTTP), which can be retrieved from the OneLogin app SSO screen.

Single Log Out Service URL

Login with SSO currently does not support SLO. This option is planned for future development, however you may pre-configure it if you wish.

X509 Public Certificate

Paste the retrieved X.509 Certificate, removing

-----BEGIN CERTIFICATE-----

 and

 -----END CERTIFICATE-----

The certificate value is case sensitive, extra spaces, carriage returns, and other extraneous characters will cause certification validation to fail.

Outbound Signing Algorithm

Select the SAML Signature Algorithm selected in the OneLogin SSO configuration section.

Disable Outbound Logout Requests

Login with SSO currently does not support SLO. This option is planned for future development.

Want Authentication Requests Signed

Whether OneLogin expects SAML requests to be signed.

note

When completing the X509 certificate, take note of the expiration date. Certificates will have to be renewed in order to prevent any disruptions in service to SSO end users. If a certificate has expired, Admin and Owner accounts will always be able to log in with email address and master password.

When you are done with the identity provider configuration, Save your work.

tip

You can require users to log in with SSO by activating the single sign-on authentication policy. Please note, this will require activating the single organization policy as well. Learn more.

Test the configuration

Once your configuration is complete, test it by navigating to https://vault.bitwarden.com, entering your email address, selecting Continue, and selecting the Enterprise Single-On button:

Log in options screen
Log in options screen

Enter the configured organization identifier and select Log In. If your implementation is successfully configured, you will be redirected to the OneLogin login screen:

OneLogin Login
OneLogin Login

After you authenticate with your OneLogin credentials, enter your Bitwarden master password to decrypt your vault!

note

Bitwarden does not support unsolicited responses, so initiating login from your IdP will result in an error. The SSO login flow must be initiated from Bitwarden.
